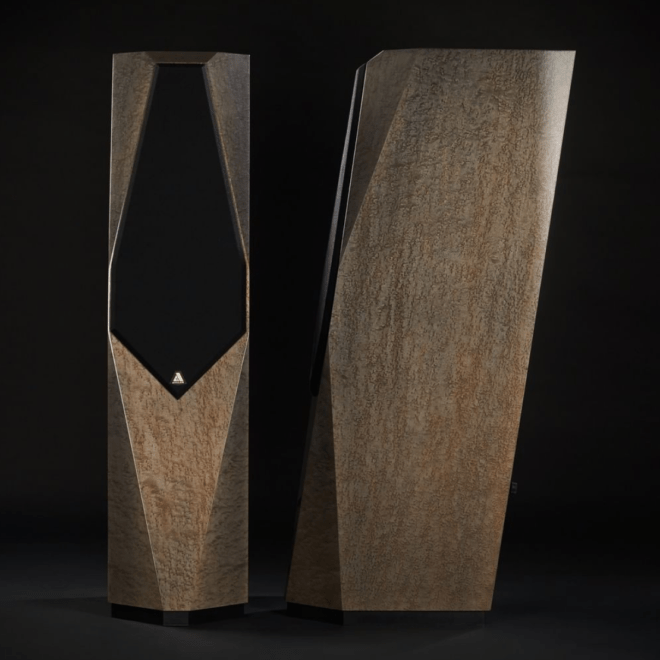

Avalon Acoustics PM4 Loudspeakers

The PM4 is a full range reference monitor designed specifically for superlative tonal and spatial accuracy. Recovery of fine low-level detail, maximum possible resolution, transient accuracy, and exceptional dynamic contrast were our specific design goals. Accurate tracing of all waveform parameters, without exaggeration or artifact is the hallmark of the Precision Monitor 4, a transparent window into the heart of recorded music.

Each model of The PM Series will bring image specificity and spatial detail to a precise and dynamic soundstaging envelope. Frequency and phase responses follow the benchmarks set by SAGA and TESSERACT for accuracy; each model is a floor standing monitor-quality reference transducer. Each design in the PM series incorporates the latest proprietary phase linear topologies and high current capabilities developed for SAGA. Spatial detail in a panoramic presentation with micro-dynamic contrasts will be their hallmarks.

Avalon have created an exclusive visual surface for the PM Line. Each model will be available exclusively in our Polychrome Precision surface, with cost options for standard-sheen or high-gloss lacquer. The Polychrome Precision surface takes on the color and lighting of the environment, making it extremely neutral and versatile for placement in any décor.

• • Proprietary Silent Inert Cabinet material/process

• • Advanced light weight driver diaphragm materials minimize energy storage and time-domain distortion.

• • Each driver individually tested and matched for optimum performance.

• • Smooth, wide polar response for superlative imaging capabilities.

• • Exceptionally flat impedance characteristics, damped and purely resistive, for ideal interface with high speed/high resolution amplification.

• • Crossover circuitry is hard-wired with surface-only conductors, eliminating deleterious sonic effects of printed-circuit boards.

• • Proprietary all-phase crossover topologies. 5 degrees phase deviation from 0 dB to -76dB (all drivers)

• • Careful crossover control of all magnetic field interaction.

• • Proprietary magnetics technology increases energy transfer and reduces noise floor.

• • Constrained-mode damping system absorbs cabinet vibrations.

• • Three dimensional staging through meticulous 2pi-4pi baffle shaping.

• • Purely pistonic driver behavior. No diaphragm break-up modes within 76db of signal
  • Acoustically inert wave launch platform.

1″ Concave Diamond Diaphragm tweeter
3 x 1/2″ Concave Ceramic Dome Midrange
11″ Nomex Kevlar Composite Cone Woofer

Sensitivity:
89 dB

Impedance:
4 Ohms Nominal

Frequency Response:
24 Hz to 50 kHz

Recommended Amplifier Power:
25 to 400 Watts

Wiring Methods:
Two Position Binding Post

Dimensions:
49” (125 cm) High
12″ (30 cm) Wide
17″ (43 cm) Deep

Weight:
175 Pounds (79 kg each) each
