Shunyata Research Hydra Delta D6

SKU: 0301092

Home Products Brands Shunyata Research Shunyata Research Power Conditioners Shunyata Research Hydra Delta D6

Shunyata Research Hydra Delta D6

SKU: 0301092

  • Performance Line Power Distributor
  • 6 UK Sockets
  • 6 Zones of Isolation
  • Incredible Performance
  • Huge Noise Reduction

£3,500.00

The Audio Therapy take...

Shunyata Research Hydra Delta D6

The Hydra Delta D6 is the second model in Shunyata’s performance line of products

The Delta D6 combines patented innovations from Shunyata Research’s extensive R&D at a price point that redefines the ratio of performance and price.

Over the past 25 years, Shunyata Research has earned a reputation for producing the finest power distribution systems in the high-end audiophile market.  From providing clean power for James Guthrie’s re-master of Dark Side of the Moon, or resolving subtle heart signals in medical imaging systems, Shunyata Research products have consistently provided transformational results.  With the legacy of award winning products, Shunyata Research designer Caelin Gabriel set about combining 25 years of experience and scientific innovation, into a product specifically for the UK audio market.

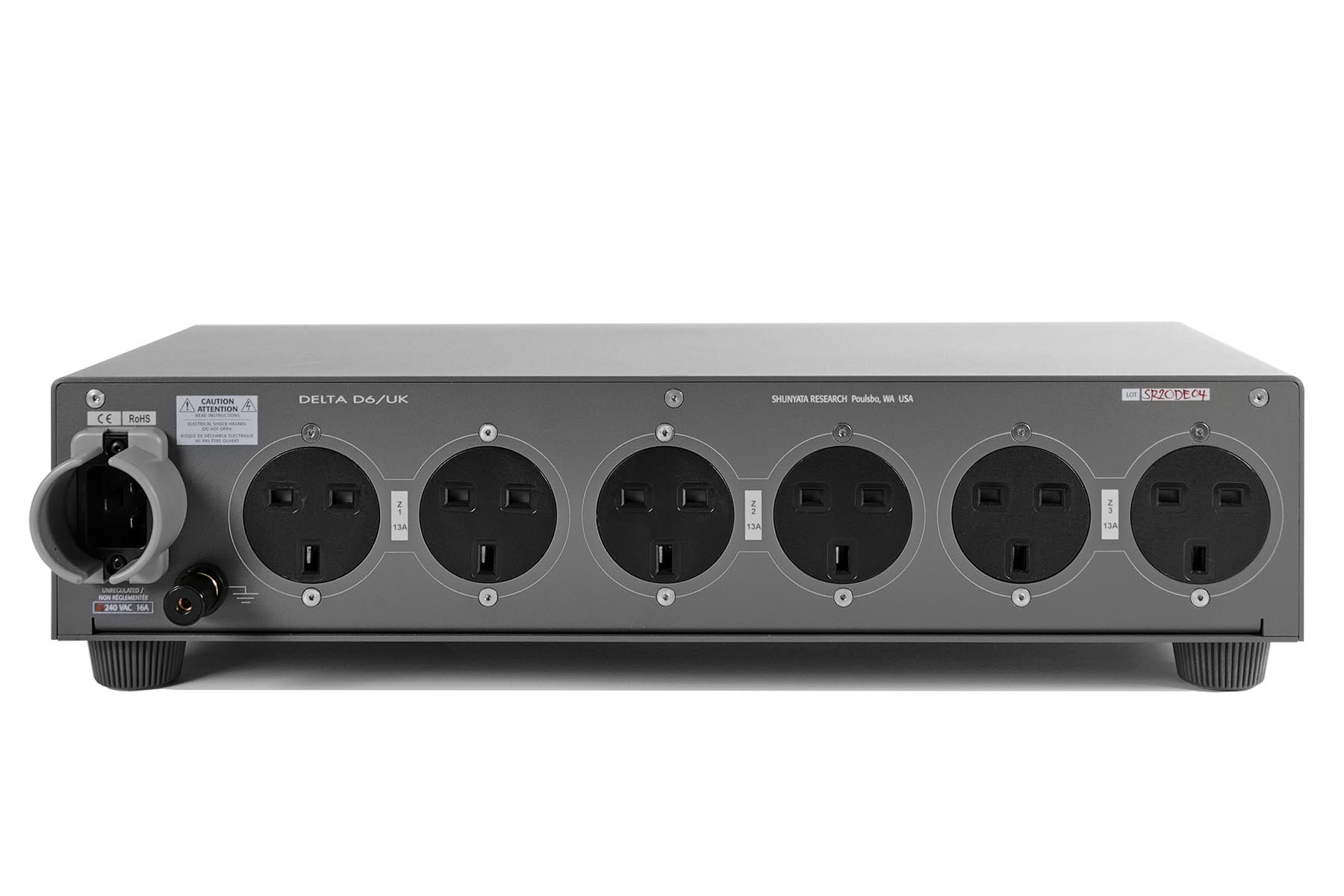

The Hydra Delta D6 features 6 UK sockets, with 6 zones of isolation. Like the Alpha A10, the D6 can fit in a normal equipment stand or even an enclosed cabinet or cupboard as it generates no heat.

The Delta D6 requires a C19 power cable, the Gamma XC is the first XC power cable and is very good, but if budget permits stepping up to a Theta XC or even Alpha XC will pay dividends in terms of overall system performance.

There are 5 XC power cables in the range which are as follows….

Gamma XC £649

Theta XC £1100

Alpha-X XC £2850

Sigma-X XC £4000

Omega XC £7000

When a system is connected to an D6 you get a reduction in distortion, an increase in detail and clarity and it really allows you to hear your system perform like you will have never heard before.

Specification

Maximum Voltage
90-125 VAC r.m.s. unregulated (US)
220-240 VAC r.m.s. unregulated (EU, AS, AU)

Input Current Ratings
Maximum Continuous Current: 20A (US, AS)
Maximum Continuous Current: 16A (EU, AU)

Output Current Ratings
Max Current/Outlet: 20A (US, AS)
Max Current/Socket: 16A (EU, AU)

Transient Suppression
Maximum Transient Protection: 40,000 A @ 8/50 μs

Over-Current Protection
Hydraulic Electromagnetic Breaker

Wiring System
8 gauge ArNi® VTX™ Buss System
10 gauge ArNi® VTX™ Wiring

Ratings: 600 V 105° C

Noise Suppression
Input to Output (100 kHz – 30 MHz): > 40 dB reduction
Zone to Zone (100 kHz – 30 MHz): > 50 dB reduction

Outlets & Connectors
Zones of Isolation: 6 Zones
Inlet: IEC C19R

US Outlets: 6 NEMA5-20R
AS Outlets: 6 NEMA 5-20R
EU Sockets: 6 CEE 7/3
AU Sockets: 6 AS/NZS 31123

Vibration Control
Vibration dampening panels (internal)
AC outlet dampening gaskets

Construction
Aluminum and steel chassis
Anodized, aluminum faceplate

GPNR
Length: 127 mm
Diameter: 38 mm

Dimensions
Width: 17.0 inches (20.32 cm)
Depth: 9 inches (22.9 cm)
Height: 4.6 inches (11.7 cm)
Weight: 9.5 lbs (4.3 kg)
