£14,900.00

The Audio Therapy take...

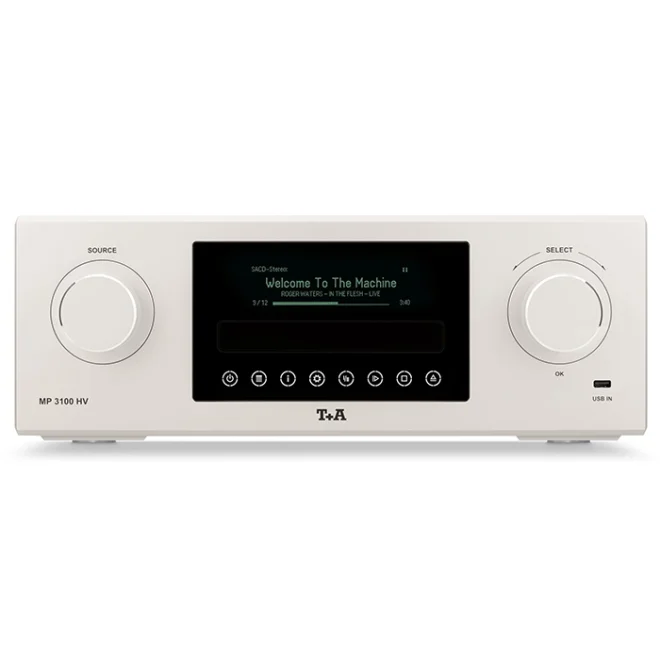

T+A MP 3100 HV Multi Source Player

The MP 3100 HV is a bit of a Swiss army knife of a source component, built to the same exacting standards of the other HV components the MP3100 has quite a feature list. It offers CD and SACD playback with dedicated DAC chip for each format to ensure the very best performance from each standard.

The on-board DAC offers 6 legacy digital inputs for connecting to other components, there is 2 optical, 2 BNC, 1 AES EBU and 1 Coaxial RCA, there is USB B for connecting a computer or Melco etc which supports up to and including DSD 512

Once connected to your network (either via Wi-Fi or Ethernet) you can use the T+A Music Navigator app to stream Tidal, Qobuz and Deezer, it is also Roon Ready and has Internet Radio, plus DAB and FM for those with an aerial and Bluetooth.

Analogue outputs are available on both RCA and XLR.

In terms of power the MP 3100 requires 2 power cables for it function, to maximise performance the digital and analogue sections are completely separate to one another.

Specifications

SACD drive unit:
High precision linear tracking drive
Double-Lasersystem: SACD: 650 nm, CD: 785 nm
Formats
SACD Stereo, CD, CD-R, CD-RW, CD Text
Frequency range and dynamics
CD: 2 Hz – 20 kHz / 100 dB,
SACD: 2 Hz – 44 kHz / 110 dB

Streaming Client:

Formats / Standards: MP3, WMA, AAC, OGG Vorbis, FLAC, WAV, AIFF, ALAC / UPnP AV

Data rates: PCM 32…192 kHz,16/24 Bit; MP3 bis 320 kBit, constant and variable Data rate
Music services: Tidal, qobuz. Deezer, Roon Ready (Subscription required)
Features: Gapless Playback for MP3 (Lame), WAV, FLAC.
T+A MusicNavigator App for iOS and Android)
Interfaces: LAN: Fast Ethernet 10/100 Base-T, WLAN: 802.11 b/g/n

Tuner:

Internet Radio: Airable Internet Radio Service (> 11000 Stations)

FM, FM-HD: 87,5 – 108 MHz; sensitivity 1 µV; S/N > 65 dBA
DAB, DAB+: 168 -240 MHz (Band III); sensitivity 2,0 µV, S/N > 96 dBA.
Features: RDS/RDBS, station name (PS), programme type (PTY), radiotext (RT), time
Bluetooth: A2DP (Audio), AVRCP 1.4 (Control) / aptX®, MP3, SBC.

Connections:

Outputs analogue: Co-axial (RCA) | Balanced (XLR)
Output digital: 1 x coax, IEC 60958 S/P-DIF (LPCM)
Digital inputs: 1x AES-EBU 192 kSps /24 bit, 5x S/P-DIF: 1x standard coax, 2 high quality BNC 192 kSps/24 bit and 2 optical TOS-Link 96 kSps /24 bit.
1x USB: Device-Mode up to. 384 kSps (PCM) and DSD512*, supports asynchronous data transfer
2 x USB Master-Mode for USB-Mass storage (Stick or HDD)
* DSD256 and DSD512 only with a Windows PC with appropriate driver installed

D/A Converter

PCM: Double-Differential-Quadruple-Converter with four 32-Bit Sigma Delta D/A converters per channel. 352.4 / 384 kSps conversion rate
DSD: T+A True-1Bit DSD D/A-Converter native bitstream
Upsampling (PCM): T+A Digital Signal Processor – synchronous upsampling with 4 selectable oversampling algorithms: FIR short, FIR long, Bezier/IIR, Bezier
Analogue filter: Phase-linear Bessel filter 3rd Order with 60 or 120 kHz cut off frequency
Frequency response:
PCM 44.1 kSps: 2 Hz – 20 kHz
PCM 48 kSps: 2 Hz – 22 kHz / DSD 64: 2 Hz – 44 kHz
PCM 96 kSps: 2 Hz – 40 kHz / DSD 128: 2 Hz – 60 kHz
PCM 192 kSps: 2 Hz – 80 kHz / DSD 256: 2 Hz – 80 kHz
PCM 384 kSps: 2 Hz – 100 kHz / DSD 512: 2 Hz – 100 kHz
Total harmonic distortion:
< 0,001 %
Signal / noise ratio
> 116 dB
Channel separation
> 110 dB

Mains, Dimensions and Accessories

Mains: 2 x 110-120 V or 220-240 V, 50-60 Hz, 2 x 40 W
Standby: < 0,5 W
Dimensions: (H x W x D) 17 x 46 x 46 cm
Weight: 26 kg
Remote control: F 3100, IR radio remote control T+A MusicNavigator APP
Accessories: WLAN aerial, BNC / RCA adapter
